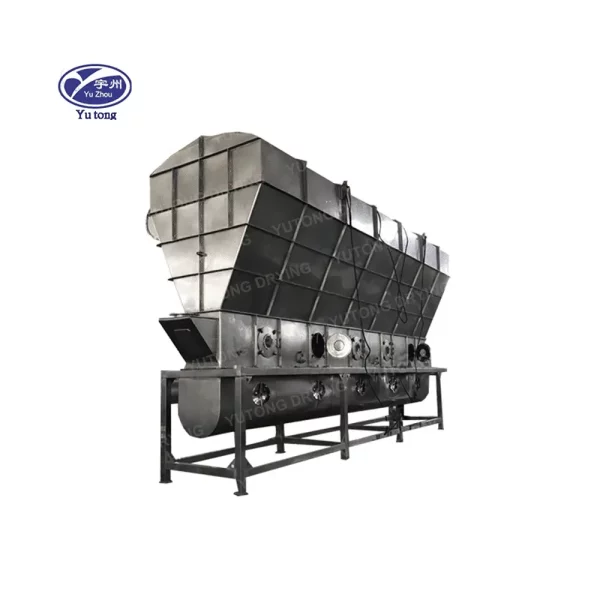

Xf Series Vitamin Closed Circulating Continuous Horizontal Fluid Bed Dryer

Condition: New
Brand Name: yuzhou
Place of Origin: Jiangsu, China
Key Selling Points: High Safety Level
Warranty: 1 Year
Weight (KG): 2000
Showroom Location: None
Marketing Type: Hot Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Pump, Motor, PLC, Engine, Pressure vessel

Table of Contents

Product Detail

Basic principle

Granule or pellet solid materials are fed into the fluidized bed dryer through the feeder. Filtrated clean air is heated and charged onto the bottom of the fluidized bed to contact the solid materials on the distributing plate, where fluidization can be reached and the heat exchange between solid and air can be achieved. After being dried, the products are discharged from the outlet. Waste gas is discharged from the top of the fluidized bed, and the cyclone separator or bag dust remover recovers powder materials.

Description of Horizontal Fluidizing Dryer
Fluidizing dryer is mostly used for drying diferent kind of Vanilin product. We already have lots of different
customers of Vanillion in China, some are the top leading enterprise in the line.

Main Features
1) This fluidized dryer operates under closed negative pressure without dust explosion.
2) Using anti-static filter materials, our fluidized drying machine operates safely and stably

Specifications

Type
Bed area(m³)
Drying
capacity
(water Kg/h)
Power(Kw)
Air pressure(Pa)
Air volume(m³/H)
Air intake
temp(℃)
Material
discharge
temp(℃)
Heating energy consumption
Steam(Kg/h)
Heating energy consumption Elec power(kw)
XF-10A
0.25

10~15
5.5
4900
2300

60~140

40~80



50



30

XF-10B
0.25
4
3800
2300
XF-20A
0.5


20~25

7.5
5000
3100


100



60

XF-20B
0.5
5.5
3500
3100
XF-30A
1


30~45

15
6000
4200


150



90

XF-30B
1
11
4700
4200
XF-50A
2


50~80

22
7400
6000


250



150

XF-50B
2
18.5
5900
6000

Applications

Applicable Industries:

Chemicals Processing, Plastics Processing, Food Processing
