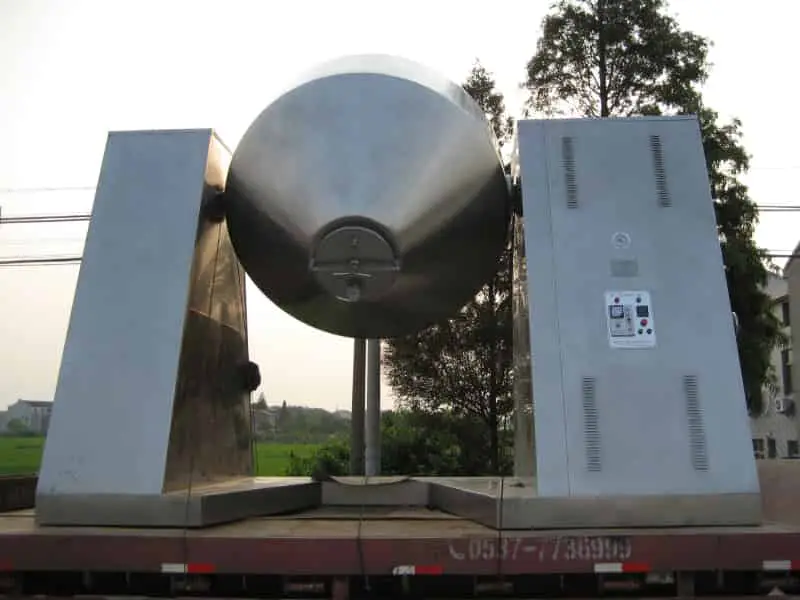

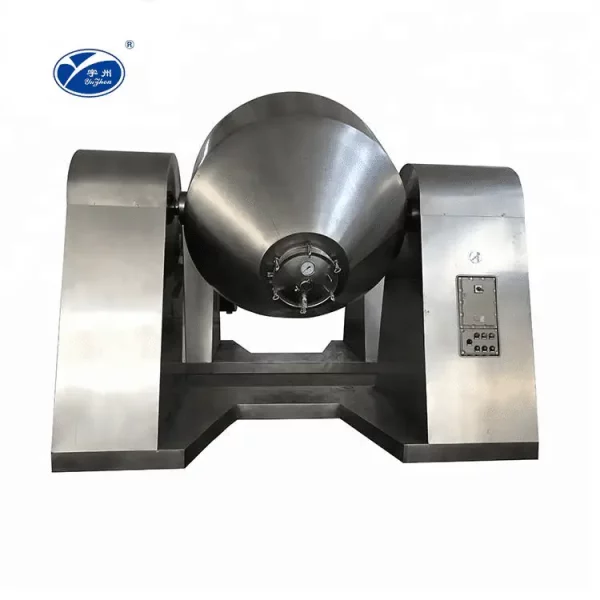

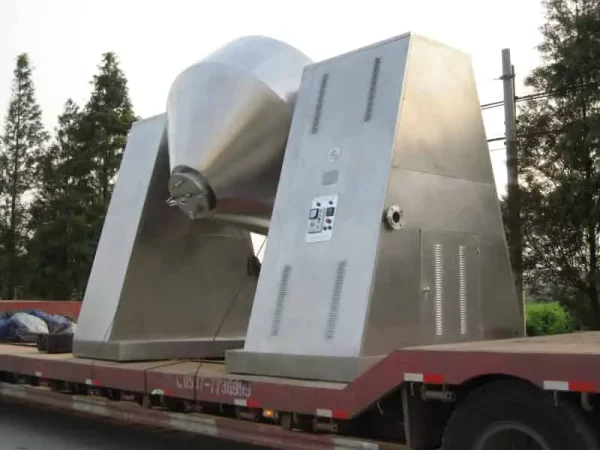

Basic principleSZG Double Conical Revolving Vacuum Dryer is double conical rotating cyliner. Under the state of vacuum inthe cylinder, pass conducting oil or hor water into the jacket to heat. The heat willbe contact with damp rawmaterials through inner wall. The evaporated steam after the raw material absorbed heat will be exhaustedthrough vacuum pump. Because the inner of cylinder is in vacuum state and the cylinder make raw materiaturn over from up to down and from inner to outer, the drying speed is fastened and the drying eficiency isimproved, and the purpose of uniform drying can be reached.
Description of SZG Double Conical Revolving Vacuum Dryer

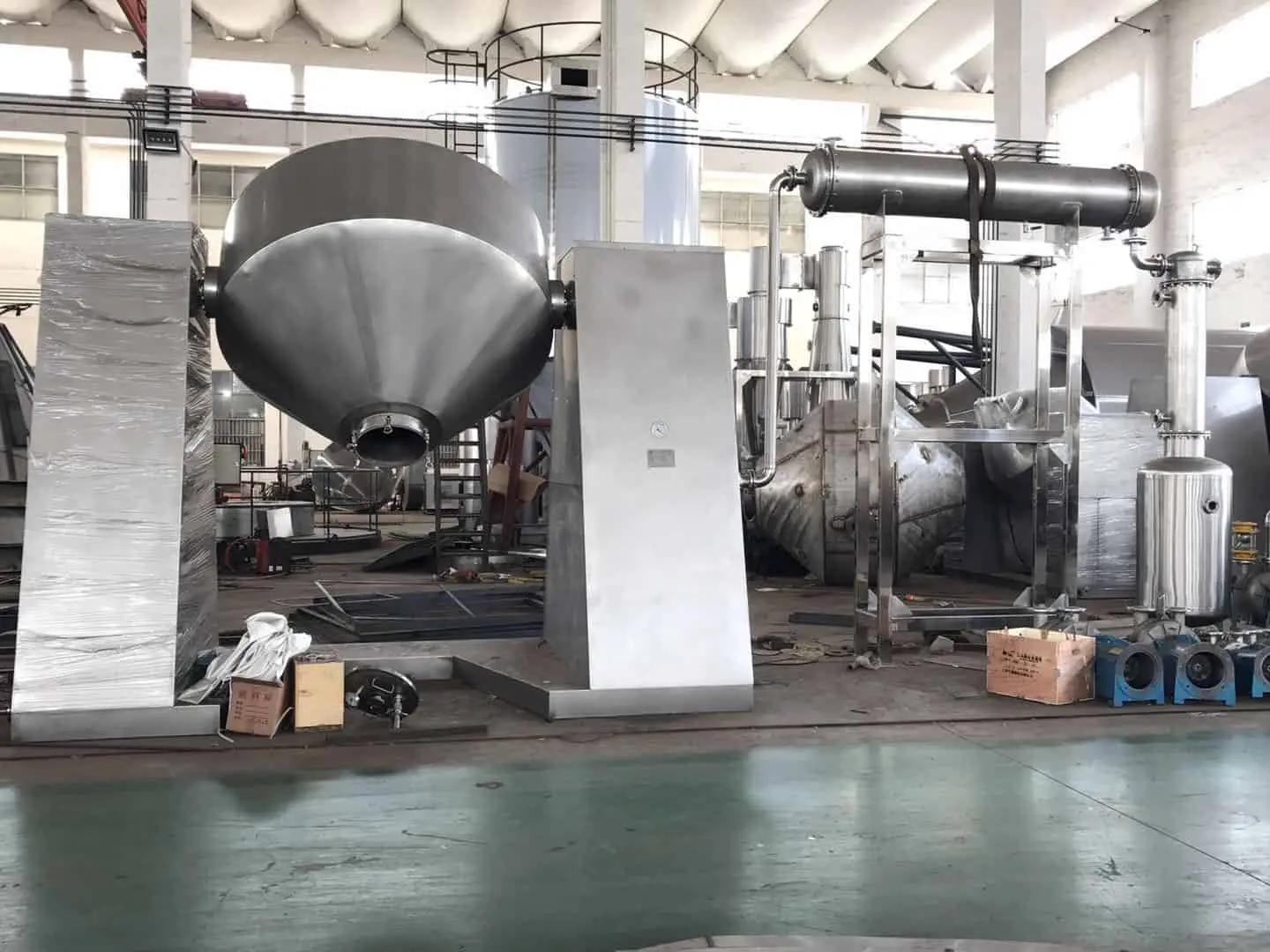

The Double Conical Revolving Vacuum Dryer is a new style dryer integraetd mixing and drying in one bodyIt is equipped with condensator and vauum pump. (lf the solvent does not recover, the condensator maydispensable).
Specifications
Model
|
100
|
500
|
1000
|
1500
|
2000
|
5000
|
Volume (L)
|
100
|
500
|
1000
|
15000
|
2000
|
5000
|
Maximum Loading Volume (L)
|
40
|
200
|
400
|
600
|
800
|
2000
|
Maximum Loading Capacity (kg)
|
20
|
100
|
200
|
300
|
400
|
1000
|
Rotating Speed (rpm)
|
3~13
|
6
|
5
|
4
|
||
Motor Power (k w)
|
0.75
|
1.5
|
3
|
4
|
5.5
|
15
|
Floor Area (mm)
|
2160 × 800
|
2350× 800
|
2860 × 1300
|
3060 × 1300
|
3260 × 1400
|
4400 × 2500
|
Rotation Height (mm)
|
1750
|
2250
|
2800
|
2940
|
2990
|
4200
|
Design Pressure In Container (MPa)
|
-0.09 to 0.096
|
|||||
Interlayer Design Pressure (MPa)
|
≤ 0.3
|
|||||
Weight (kg)
|
800
|
1200
|
2800
|
3300
|
3600
|
8600
|
Applications
Applicable Industries: Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Food Shop, Energy & Mining, Food & Beverage Shops
