Product Overview

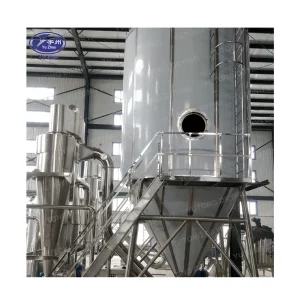

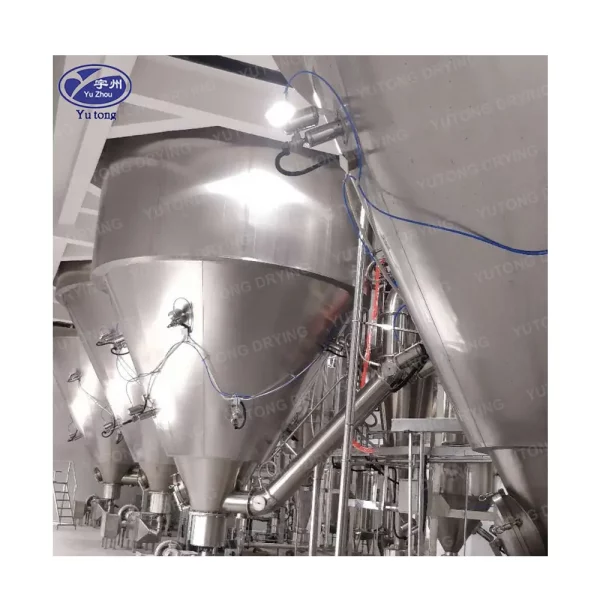

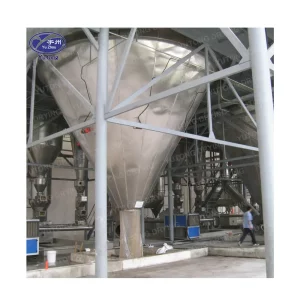

The Spray Drying Coffee Machine is manufactured for the chemical processing and food processing industries. It is manufactured by Yutong and originated in Algeria.
Main features
1. High safety level: Adopting advanced safety mechanisms and strict quality control to ensure a safe operating environment for operators and comply with international safety standards.
2. High efficiency: Adopting advanced spray drying technology, it can dry coffee or other substances quickly and efficiently, maximize productivity and reduce energy consumption.
3. Easy Operation: User-friendly interface and intuitive controls make it easy for both experienced technicians and new operators to set, monitor and adjust drying process parameters.
Technical Specifications
Weight: Up to 1000 kilograms of rugged construction for continuous operation.
Voltage: Configurable to 380 volts or customized to specific site requirements to ensure compatibility with different power settings.
Power: Power supply options can be customized to suit a wide range of production sizes and process intensities.
Dimensions: (L*W*H): Customizable dimensions to accommodate different installation spaces and production line layouts.
Model Range: LPG-5~LPG-2000 models are available for flexible selection of the most suitable capacity for specific applications.
Heating method: Steam heating, efficient and uniform heat transfer to ensure consistent drying effect.
Heating source: Electricity, steam, oil or natural gas can be used, with versatility to adapt to different energy and cost considerations. 8.
8. Material: Made of high-grade stainless steel materials such as SUS304, SUS304L, SUS316 and SUS316L, which are known for their excellent corrosion resistance, hygienic properties and durability, making them suitable for handling food and chemical products.
Core Components
1. Motor: A high-performance motor drives the spray unit and other essential functions, ensuring reliable, continuous operation.
2. Gearbox: Precision-engineered gearboxes provide smooth power transmission and speed control to regulate drying process parameters precisely.
Warranty and Certification
1. Warranty: 1-year full warranty for the whole machine and 1-year warranty for the core components, providing peace of mind after-sales support.
2. Certifications: Compliance with CE, ISO14001 and ISO9001 standards demonstrates quality, environmental friendliness and adherence to international management systems.
Specifications
|
spec
|
ZPG-25
|
ZPG-50
|
ZPG-80
|
ZPG-100
|
ZPG-150
|
ZPG-200
|
ZPG-300
|
|
|
evaporation capacity(kg/h)
|
25
|
50
|
80
|
100
|
150
|
200
|
300
|
|
|
process amount of material liquid(kg/h)
|
25-34
|
50-68
|
80-108
|
100-135
|
150-203
|
200-270
|
300-406
|
|
|
output of finished pcoduct(kg/h)
|
4.8-7.2
|
9.2-14
|
14.8-22.4
|
18.4-28
|
24-42
|
36.8-56.4
|
55-85
|
|
|
solid content of material liquid( %)
|
18-30
|
|||||||
|
moisture content of finished product( %)
|
3-5
|
|||||||
|
electric power(kw)
|
63
|
132
|
153
|
204
|
246
|
330
|
||
|
heat source
|
Steam pius electricity
|
|||||||
|
Collecting method of product and its efficiency
|
Grade one or two or three stage cyclone wet dust remover is greater than or equal to 95%
|
|||||||
|
automatic control meters and instruments
|
indicator of not air and exhaust air temperature
|
|||||||
|
temperature of air inlet(℃)
|
160-220
|
|||||||
|
temperature of air outlet(℃)
|
80-100
|
|||||||
|
L
|
7000
|
8000
|
9800
|
11000
|
12200
|
14100
|
15000
|
|
|
overal dimensions(mm)
|
W
|
4000
|
5000
|
5700
|
6200
|
7000
|
7800
|
9000
|
|
H
|
6200
|
6900
|
8000
|
8900
|
10750
|
11900
|
13000
|
|
Applications
Applicable Industries
1. food and beverage factories: ideal for large-scale coffee production, converting liquid coffee extracts into high-quality powdered coffee products with consistent quality and flavour. 2. food stores: can be used in-house.
2. food outlets: for in-house coffee roasting and drying operations to create unique coffee blends and speciality coffee powders. 3. food service outlets: for small to medium-sized coffee roasting and drying operations.
3. food service establishments: for small to medium-sized coffee dryings needs, such as producing custom coffee additives or processing coffee on-site to enhance freshness and flavour.
Yutong’s spray dry coffee machines are a reliable, efficient and versatile solution that combines advanced technology, quality materials and comprehensive after-sales support, making them the best choice for a wide range of applications in food and chemical processing.
