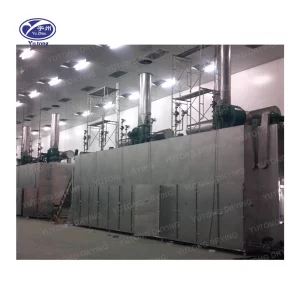

Industrial Vacuum Belt Dryer Mesh Belt Dryer

Warranty of core components: 1 Year
Core Components: Bearing, Gearbox, Gear
Place of Origin: Jiangsu, China
Weight: 1000 KG
Warranty: 1 Year
Condition: New
Brand Name: yutong
Type: Custom
Voltage: customized
Power: variable
Dimension(L*W*H): variable
Year: 2019
Name: vanilla seeds convery Mesh Belt Dryer
Type: Dehydrator
Function: dehydrate

Table of Contents

Product Detail

Basic principle
The materials are uniformly put on the mesh-belt by the material harger, The mesh-belt used generally 12-60mesh stainless steel wire net and it is drewn and moved inside the driver by a transmission device. The drier is composed of several units,.For each unit.the hot air is circulated separately, in the first unit.ain out from circulation sir blower pass throuah beside into low unit after air is up and heated by the steam heater. be sharedseperater, the air is sprayed through mesh-belt into top of the machine, The drying process is hot air passes through the mesh-belt covered with special moisture from the top to the bottom of from the bottom to the top and this will complete the heat and mass transfer process. The air pipe of the top is connected with fan, one part of air is circulated, some exhaust gas is discharged with a special moisture elimination blower other waste gas is controlled through an adjustment elimination lower, and other waste gas is controlled through an adjustment valye. The top and low circulation units can be freely equipped according to the users demand, The unit number can be selected according to the demand.



Specifications

Model
DWC-20
DWC-25
DWC-32
DWC-36
DWC-48
DWC-60
DWC-80
Spreading Area (m2)
20
25
32
36
48
60
80
Steam Pressure (Mpa)
0.4 to 0.7
Steam Consumption (Kg/h)
150 to 300
180 to 375
240 to 480
270 to 540
360 to 720
450 to 900
600 to 1200
Drying Cycle (min)
20 to 200
60 to 600
100 to 1000
Evaporation Power (Kg/h)
100 to 200
125 to 250
160 to 320
180 to 360
300 to 480
300 to 600
400 to 800
Installed Power (kw)
5.5
5.5
5.5
5.5
14.2
15.2
15.2
Total Weight (Ton.)
8
8
8.5
10
11
13
15
Outline Dimensions (m)
8.9 × 2.4 × 3.4
9.9 × 2.4 × 3.4
11.5 × 2.4 × 3.4
12.5 × 2.4 × 3.4
13.5 × 2.4 × 3.4
14.5 × 2.4 × 3.4
15.5 × 2.4 × 3.4

Applications

Description of Mesh- Belt Dryer
DW Belt dryer is continuous dryer for large production.lt is used for drying sheet materials,bar material granules materials that have good air permeability.
