FL Series CE Approved Vertical fluid bed dryer/Boiling dryer

You are here:
 > FL Series CE Approved Vertical fluid bed dryer/Boiling dryer

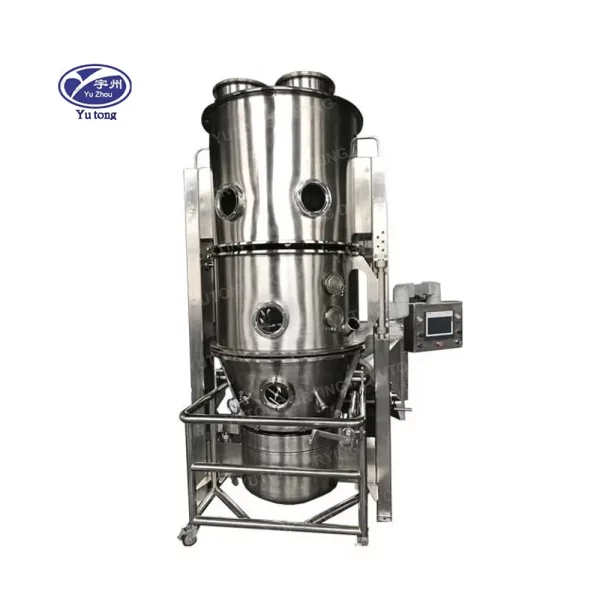

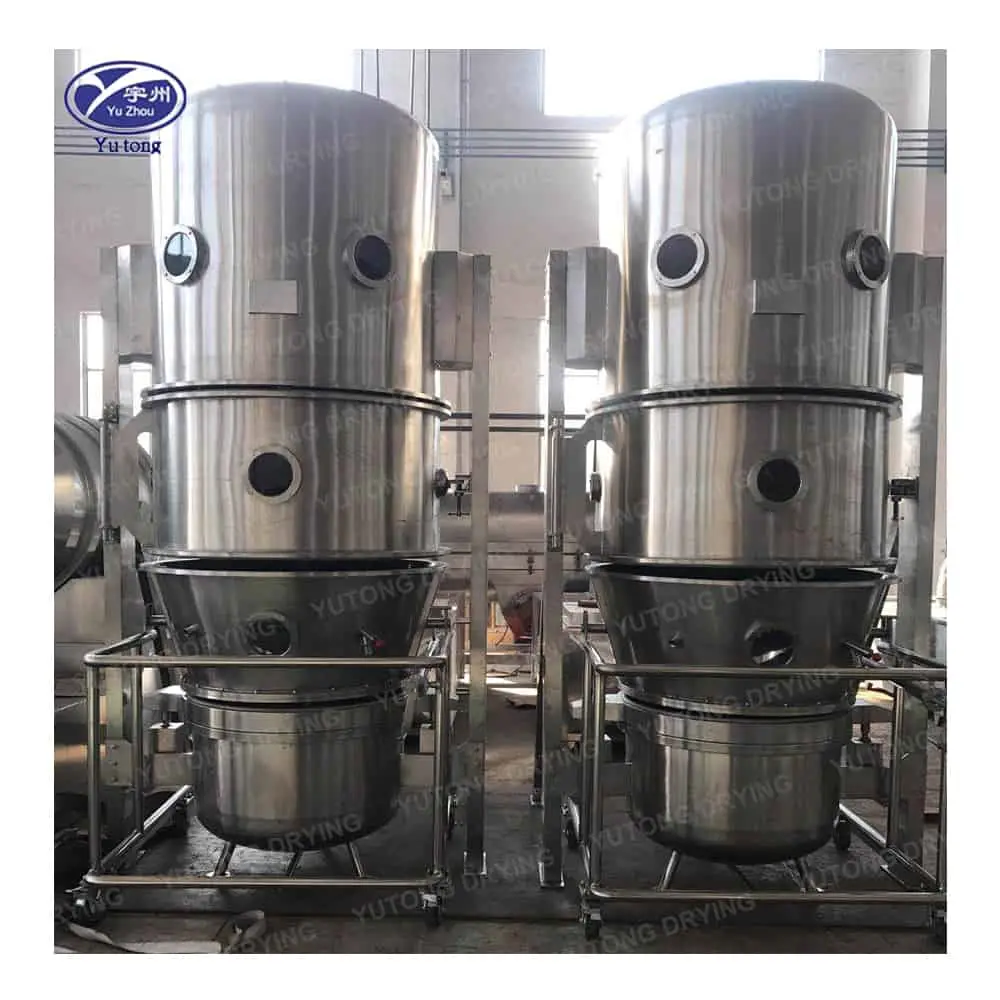

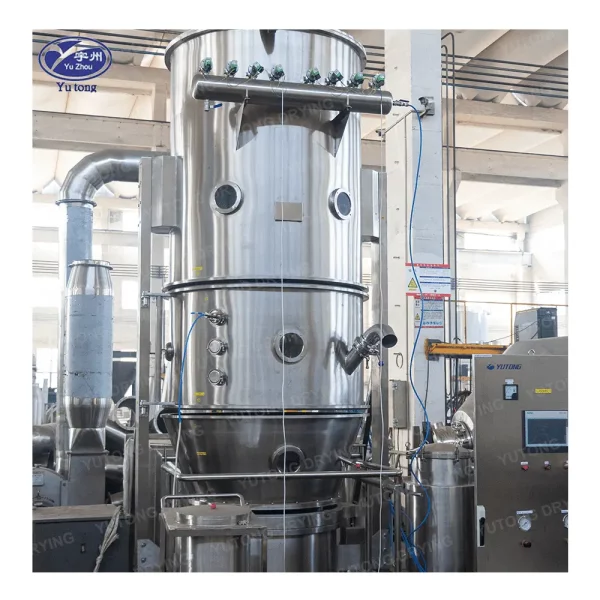

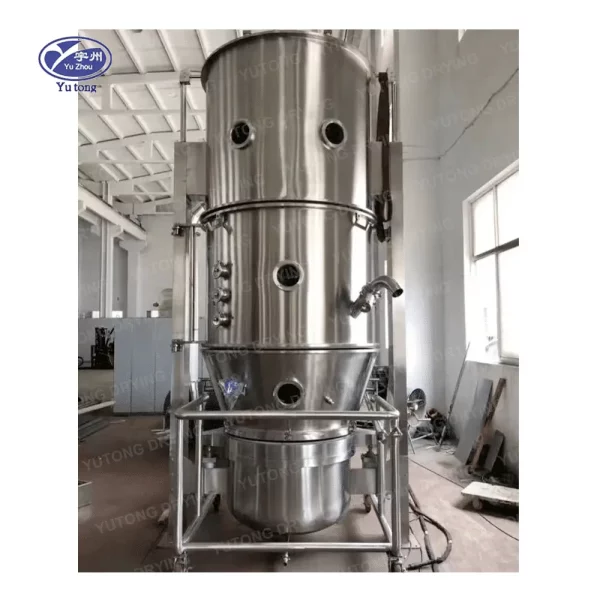

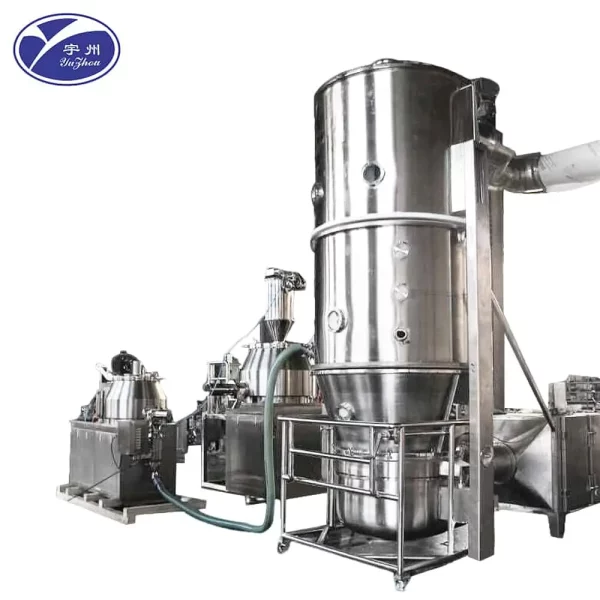

FL Series CE Approved Vertical fluid bed dryer/Boiling dryer

Condition: New
Place of Origin: Jiangsu, China
Key Selling Points: High Safety Level
Warranty: 1 Year
Weight (KG): 1000
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Pump, Motor, Gearbox, PLC, Engine
Brand Name: yuzhou

Table of Contents

Product Detail

Yuzhou Brand FL Series Fluidized Granulator And Dryer:

* Foodstuff, cocoa, coffee, milk powder, juice of granules, flavoring and so on.
* Other industries, pesticide, feed chemical fertilizer, pigment, dyestuff, and so on.
* Drying of powder or granular wet material.
* Coating: granules, a pill protection layer, color preparedness, sustained-release, film, enteric

Principle of work:

The powder granule in the container (fluidization) appears to be in a state of fluidization. It is preheated and mixed with clean and heated air. At the same time, the solution of adhesive solvent is fogged and sprayed into the container. It makes some particles become granulating and contain adhesive. Being unceasingly dry through hot air, the granulation’s moisture evaporates and the adhesive solidifies. The process is carried out continuously. Finally, it forms ideal, uniform, and porous granules.

Specifications

Model
FL-3
FL-5
FL-15
FL-30
FL-60
FL-120
FL-200
Container
Volume (L)
12
22
45
100
220
120
670
Diameter (mm)
300
400
550
700
1000
1200
1400
Productive Capacity
Min. (kg)
1.5
4
10
15
30
80
100
Max. (kg)
4.5
6
20
45
90
160
300
Fan
Air Volume (m3/h)
1000
1200
1400
1800
3000
4500
6000
Power (kw)
3
4
5.5
7.5
11
18.5
22
Stream Consumption (kg/h)
15
23
42
70
141
221
282
Compressed Air Consumption (m3/h)
0.9
0.9
0.9
0.9
1
1
1..1
Weight of Main Body (kg)
500
700
900
1000
1100
1300
1500

Applications

Applicable Industries:

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Energy & Mining, Food & Beverage Shops
